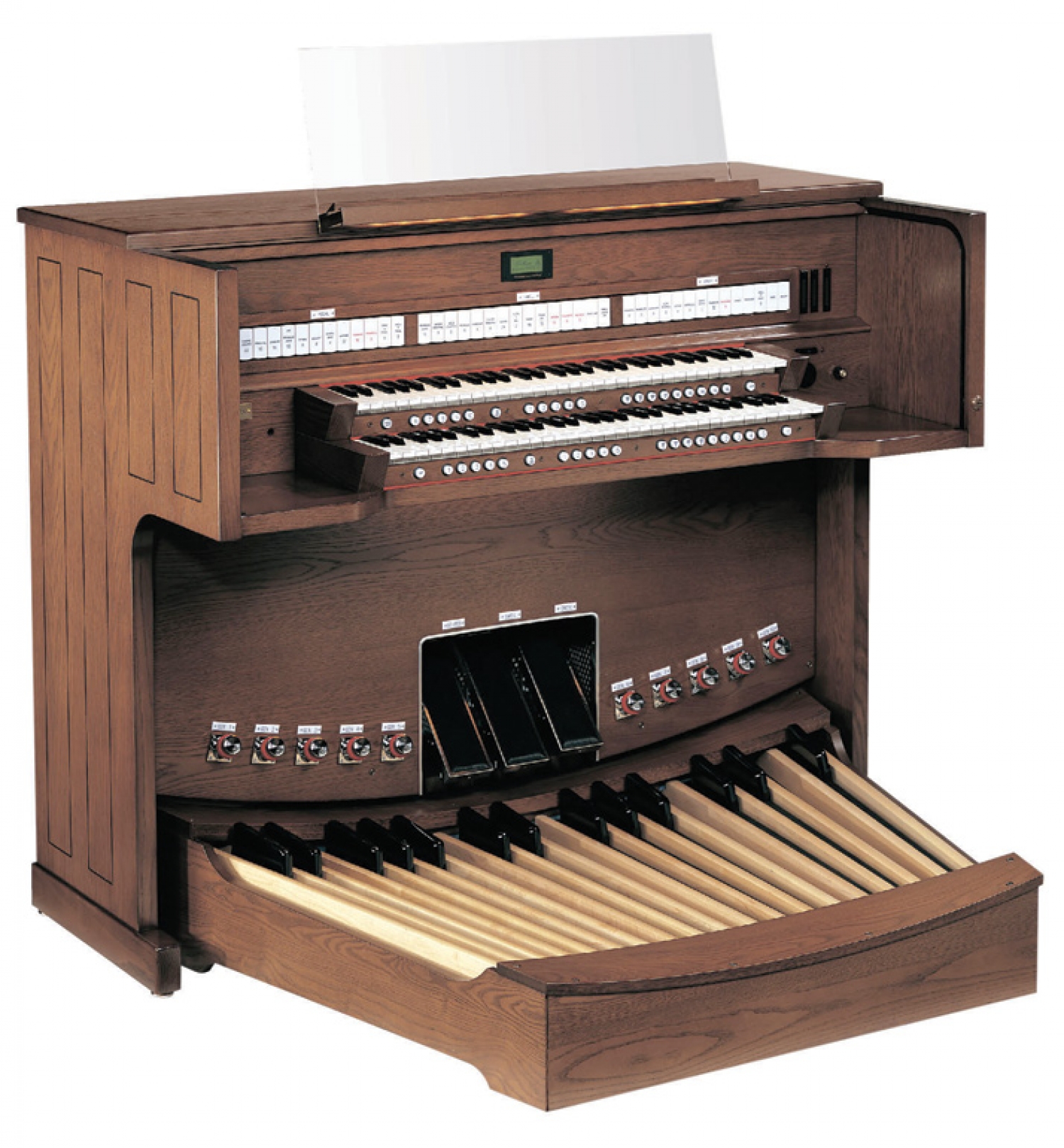

Trillium Masterpiece 788 PL

Trillium Masterpiece

Trillium Masterpiece 788 PL Trillium Masterpiece

로저스 트릴리엄 마스터피스 788
  • 상품정보고시 :
  • 상품번호 : 3045
Rodgers logo



◇ 건반：손 건반 61건×2단, 다리 건반 32건반(AGO 방사형)
 *옵션으로서 평행형의 다리 건반, 파이프 시스템, 목제 건반도 있습니다.

◇ 음색 스탑수：그레이트 9(8), 스웰 13(3), 페달 10(5)
 *( ) 내의 숫자는 음성 팔레트 음색수입니다.

◇출력(power) :500 W (RMS 외장형)

◇ 외형 치수：1,486(W)×1,258(D)×1,207(H) mm(다리 건반 보면대 포함)

3차원 음향조절장치(RSS 시스템 내장 ) 파이프 연결기능

◇ 질량：T788i/234 kg, T788e/221 kg( 모두 다리 건반 벤치 포함)

◇ T788e 포함 스피커：FR1. 7×4EA, SW7. 5×1EA

Features

  • 8 selectable historic temperaments
  • Master volume control
  • Console digital/analog clock
  • Programmable crescendo
  • LED expression indicators
  • Lighted pistons
  • Stereo headphone jack
  • Stereo auxiliary audio inputs/outputs
  • Reinforced velocity-sensitive keyboards
  • Programmable audio maps
  • Programmable tremulants
  • Programmable MIDI foot switch
  • Lighted see-through music rack
  • Adjustable console and pedalboard illumination
  • Locking hardwood rolltop
  • Transposer (+6/-5 semitones)
  • Master tuning control
  • Organist memory card and card reader
  • LCD console display with QuickMenu™
  • True Chimes™
  • Bass coupler
  • Melody from Swell coupler
  • Lift-lid storage bench
  • Built in the United States of America


Available Options

  • Custom stoplists
  • Over 500 tonal selections in the Rodgers sound library
  • Wood keyboards
  • Tracker touch keyboards
  • Various console styles and trim
  • Special and custom finishes
  • Deluxe adjustable bench or bench blocks
  • Interface to existing or new pipes
  • MIDI sound module with over 1,100 more voices



Great Organ : Principal 8'(Diapason 8') Rohrflöte 8' Gemshorn 8' Flûte Céleste II 8'(Erzähler Céleste II 8') Octave 4'(Principal 4') Spitzflöte 4'(Unda Maris II 4') Super Octave 2'(Waldflöte 2') Fourniture IV(Quinflöte 1-1/3') Cromorne 8'(Trompete 8', Royal Trumpet 8') Chimes(Harpsichord, SATB Oo, SATB Ah)

Swell Organ : Bourdon Doux 16'(Strings, Slow Strings) Geigen Principal 8'(Voile 8') Viole Céleste II 8' Bourdon 8' Prestant 4' Flauto Traverso 4' Nazard 2-2/3' Flûte à Bec 2' Tierce 1-3/5' Plein Jeu IV Basson 16'(Fagot 16') Trompette 8'(Royal Trumpet 8'[GT]) Hautbois 8'(Brass) Tremulant Swell Unison Off


Pedal Organ : Contre Violone 32' Principal 16'(Violone 16') Subbass 16'(Bordun 16') Bourdon Doux 16'[SW] Octave 8' Gedackt 8' Choralbass 4'(Nachthorn 4') Mixture IV(Rohrschalmei 4') Posaune 16'(Basson 16'[SW]) Trompete 8'



Shoes (all with indicators)

  • Great/Pedal expression
  • Swell expression
  • Crescendo

Lighted Pistons

  • MIDI Great A, MIDI Great B, MIDI Swell A, MIDI Swell B, MIDI Pedal A, MIDI Pedal B, Main Off, Antiphonal On, QuickMenu

Combination Pistons

  • Great 1-5 (thumb), Swell 1-5 (thumb), Pedal 1-5 (thumb), General 1-10 (thumb and toe), General Cancel (thumb), Set (thumb)

Reversibles

  • Great to Pedal (thumb), Swell to Pedal (thumb), Tutti (thumb)

Memory Pistons (thumb)

  • Memory 1-5

Tabs

  • Bass
  • Melody from Swell

Size and Weight

  • CONSOLE DIMENSIONS:
    122.7 cm(h) x 148.6 cm (w) x 125.5 cm (d)
    with pedalboard; depth without pedalboard: 76.7 cm

  • WEIGHT (approx.): Console: 263.6 kg, bench: 25 kg, pedalboard: 50 kg.
    Actual weight will vary depending on console options ordered.

Audio System

Available in 2 versions, external and internal. T788e - External: Five channel bi-amplified audio system (440W*) with 5 Rodgers Audiophile speakers. T788i - Internal: Three channel bi-amplified audio system (240W*). Two tweeters, two mid range and woofer. Custom speaker installations, antiphonal divisions and increased channeling are optional. (*continuous average power output)
